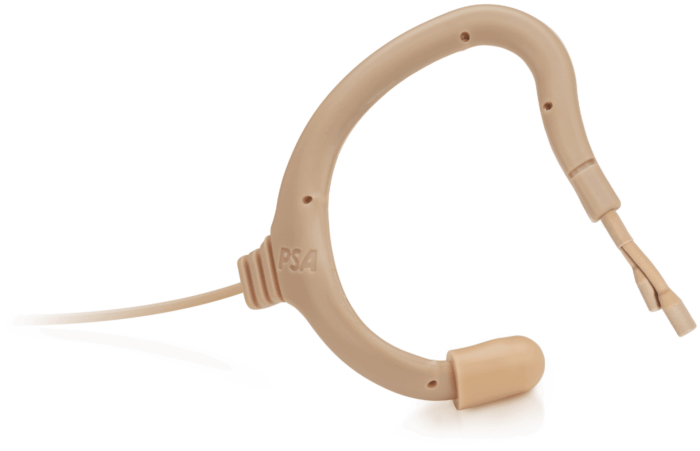

NEW! EMBRACE™ Dual Element Earmount Mic

Embrace logo, earmount, microphone
hand holding EO-8WL, orange circle

Model No: EO2-8WL

U.S. Pat: D786,220 and 9,706,285; additional patents apply

The EO2-8WL is a fully redundant microphone in the EMBRACE embodiment. The convenience of a custom-fit ear mounted lavalier is now twice as easy with built-in backup composed of two sonically matched and waterproof elements. The new design of the EO2-8WL is now even slimmer than before. Furthermore, it comes in beige, brown and black to match hair or skin tone; and also accepts color markers for extreme camouflaging.

DOWNLOAD CATALOG
MICS IN ACTION
  • Mic Check One-Two: Learn About Double Mic'ing

TWO MICS for the size of ONE

NEW! Petite Profile Design

The EO2-8WL provides built-in microphone redundancy with the convenience of a single cable. The elements are factory matched to a near identical ±0.5 dB difference—and both elements are waterproof. The mic elements are offset to reduce mass and effectuate a sleek profile.

The mic cable splits approximately nine inches above connection to the body-packs to allow ample room for separation of the transmitters.

Get all the convenience of EMBRACE — with the confidence of built-in backup!

2X the Convenience at 1/2 the Footprint

The EMBRACE EO2-8WL utilizes the very petite form factor of our dual element lavalier to provide built-in backup assurance in the convenience of a fast fitting earmount solution.

EMBRACE dual element microphone

Conceal Mics Crazy Fast!

BUY FROM AUTHORIZED RESELLERS

Expand for Microphone Details

What's Included


Earmounts

Includes two color matched Earmounts made from a bendable, trimmable, and shapeable material. This ergonomic mounting system is patented.

x-con-Open

X-Connector

Interchangeable X-Connector offers a rapid and inexpensive way to quickly change the microphone wireless termination from one brand to another.

MIC SLIDER CLIP1 - Black Color

Slider Clip

Included for traditional mounting on clothing. Our proprietary Slider Clips "slide" on to all types of fabrics — even the thinnest, most delicate materials — with a steadfast hold.

Mic Cable Clip

Cable Clip

This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.

WSN-BE Windscreen beige

Windscreen

Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.

Color Options

beige

Beige

brown

Brown

black

Black

Microphone Features

  • 2 MICS IN ONE:  Dual matched waterproof elements for built-in redundancy
  • Max SPL reaches up to 148dB  136 dB max SPL
  •   IP 57 waterproof rated
  • User-friendly interchangeable threaded screw “X-connectors”  Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Optimal gain before feedback
  • Available in colors beige, brown or black
  • Earmounts bendable and trimmable for a custom fit
  • Accepts theatrical color markers for camouflaging

Microphone Specifications

Specifications

Element: Waterproof Back Electret Condenser (2 Matched)
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43 dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136 dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 6 ft . + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style

Polar Response

CO-8_polar_response

Frequency Response

CO-8_frequency_response
