SERIES8 Headset Microphone

SERIES8 Microphones

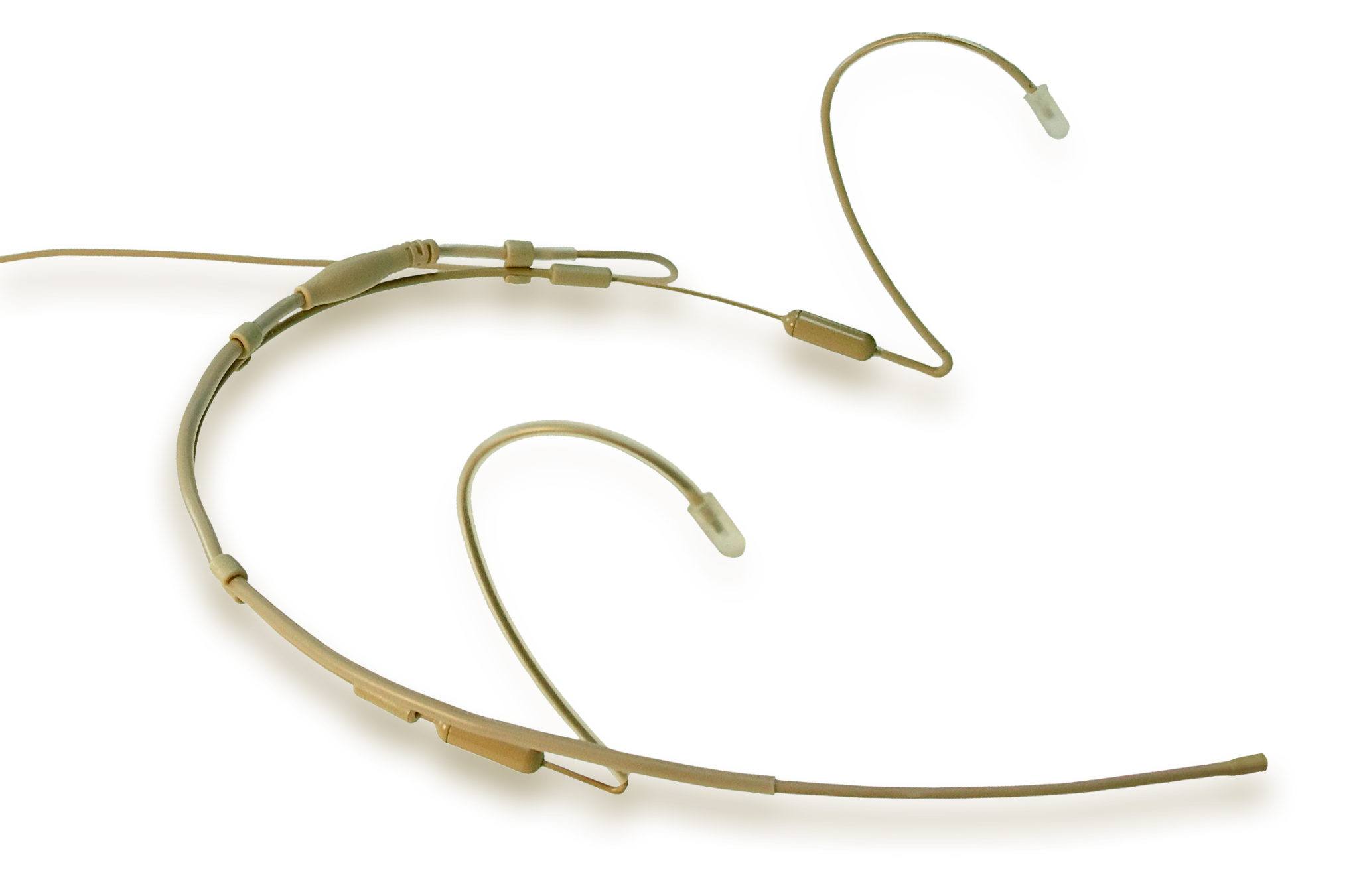

CO-8WD_BE_headset_microphone_sd

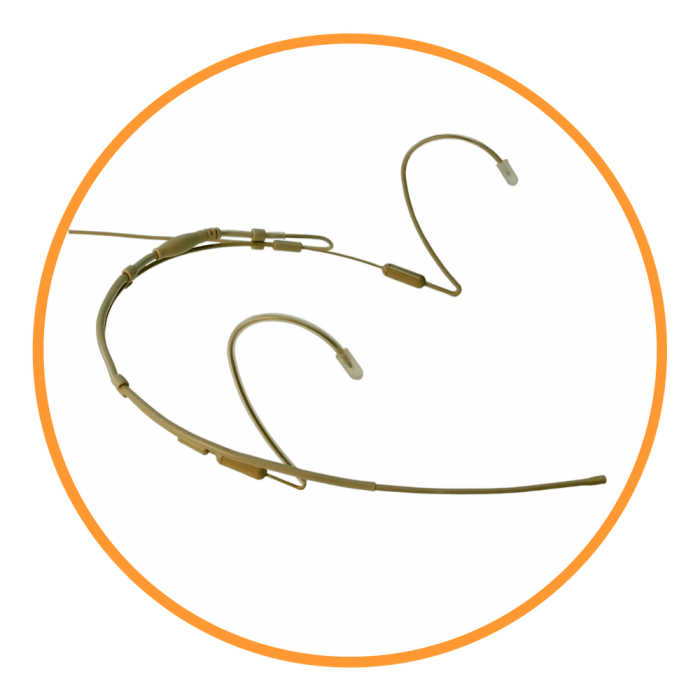

Model No: CO-8WD

The CO-8WD is a fully integrated dual ear headset microphone providing you with absolute confidence in fitting and microphone placement. The omnidirectional pattern assures ease in fitting with a natural vocal sound well suited in low to moderate noise environments. Its circular pick up pattern adapts exceptionally to a wide array of miking applications.

DOWNLOAD CATALOG
MICS IN ACTION

CO-8WD Headset wins BEST MICROPHONE!

The CO-8WD headset microphone was the chosen winner based on a two-part evaluation of the product's attributes, design, and functionality; and also its impact and benefits to the church market.

The headset is one-of-a-kind with its unique ability to reverse for left or right ear wearing. The headset ear hooks fold flat so it is compact and well protected in storage and travel. Choose the CO-8WD headset microphone if you need a high performance, but low-profile miniature mic. The CO-8WD omnidirectional headset microphone is popular for theatrical performers, live audio professionals and broadcasters alike.

Chase Oaks Church in Texas sticks with proven mic choice

Hell Never Sounded this Good!

Point Source Audio headset and lavalier microphones were selected by sound designer Robert Kaplowitz for the heated performances in the folk opera "Hadestown" by celebrated singer-songwriter Anaïs Mitchell. "Hadestown" follows Orpheus' mythical quest to overcome Hades and regain the favor of his one true love, Eurydice. Damon Daunno and Nabiyah Be sing “Wedding Song” wearing PSA headset microphones.

The best headset microphone in its category now has built-in backup!

CO2 Confidence Series

Expand for Microphone Details

Where To Buy

B&H Photo
Sound Productions
proaudio.com
Markertek
Performance Audio
Full Compass
Find A Local Dealer

What's Included

x-con-Open

X-Connector

Interchangeable X-Connectors offer a rapid and inexpensive way to quickly change the microphone wireless termination from one brand to another.

WSN-BE Windscreen beige

Windscreen

Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.

Mic Cable Clip

Cable Clip

This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.

See More Accessories

Color Options

icon

Beige

icon

Brown

icon

Black

Microphone Features

  • Highly flexible boom bends 360° and more!  "Unbreakable Boom" bends 360°
  • Max SPL reaches up to 148dB   136dB max SPL
  •    IP57 waterproof rated
  • User-friendly interchangeable threaded screw “X-connectors”   Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Mic element only 4mm in diameter
  • Optimal gain before feedback
  • Available in colors beige, brown or black

Microphone Specifications

Specifications

Element: Back Electret Condenser
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Polar Response

CO-8_polar_response

Frequency Response

CO-8_frequency_response
DOWNLOAD SPECS
