Cross Function Lavalier Microphone

CO2 Confidence Dual Element Microphones

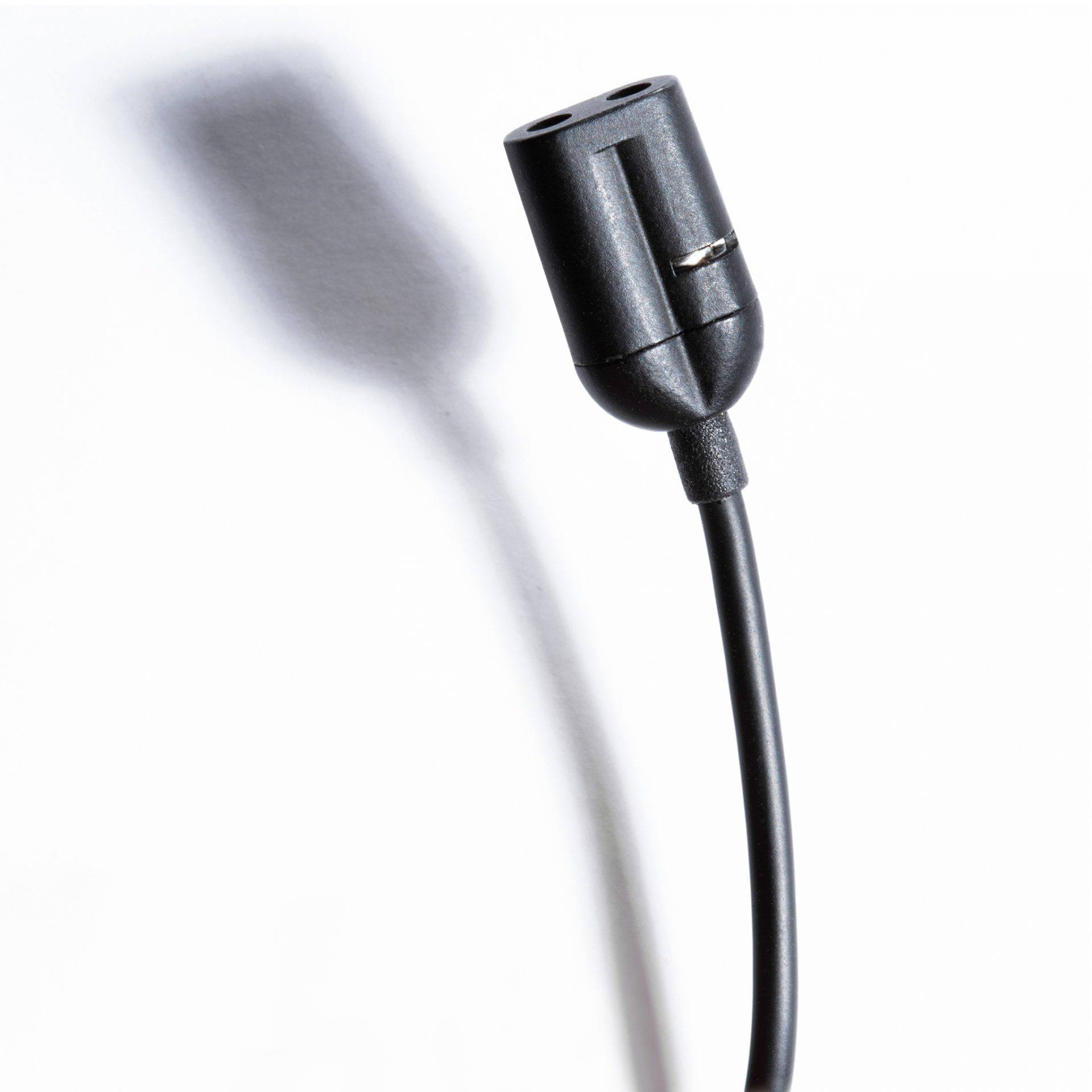

CX2-8L Switchable Lavalier, Directional/Omnidirectional Element Lavalier

Model No: CX2-8L

Dual Pattern Elements in One Microphone

PATENTED

At its minimal size, the CX2-8L dual pattern lavalier provides maximum audio flexibility and effortless cable dressing. Elegantly styled, the low-profile compact size will be a guaranteed standout—leaving only the presenter in the spotlight.

Perfect for hybrid events! They're combined for convenience but you can EQ each mic separately. Deliver for a live mix with the omni, and broadcast with the cardioid—simultaneously!

Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

DOWNLOAD CATALOG
MICS IN ACTION
CX2- on blue shirt - med

Our SLIDERS Don't Slip!

MIC SLIDER CLIP1 - Black Color

Pair the the CX2 Lavalier with our proprietary SLIDER Clip for a flawless finish. The razor thin clip holds nice — but tight — even on the most delicate of fabrics including white silk. The mic holder swivels to accommodate every mic angle.

Expand for Microphone Details

What's Included

Microphone comes with your choice of two X-Connectors and the below accessories

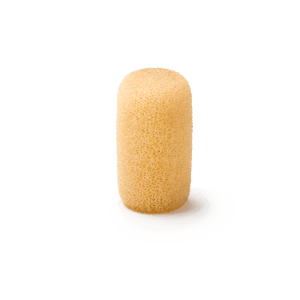

WSNx-BE large windscreen in beige

Windscreen

Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.

MIC SLIDER CLIP1 - Black Color

Slider Clip

Included for traditional mounting on clothing. Our proprietary Slider Clips "slide" on to all types of fabrics — even the thinnest, most delicate materials — with a steadfast hold.

Mic Cable Clip

Cable Clip

This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.

See More Accessories

Color Options

icon

Black

Microphone Features

This cross-function headset has both an omni and cardioid element to optimize for live PA and streaming simultaneously.

  • Max SPL reaches up to 148dB   136dB max SPL Omni; 135dB max SPL Cardioid
  • User-friendly interchangeable threaded screw “X-connectors”   Two interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Omni and Directional mic elements in a single housing
  • Optimal gain before feedback

Microphone Specifications

Omni Specifications

Element: Back Electret Condenser
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Frequency Response

CO-8_frequency_response

Polar Response

CO-8_polar_response

Cardioid Specifications

Element: Back Electret Condenser
Pattern: Cardioid
Frequency: 160Hz - 14kHz
Sensitivity: -50dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 135dB SPL
Output Impedance: 1,700 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Frequency Response

CR-8_frequency_response

Polar Response

CR-8_polar_response
DOWNLOAD SPECS
