SERIES8 Cardioid Lavalier Microphone

SERIES8 Microphones

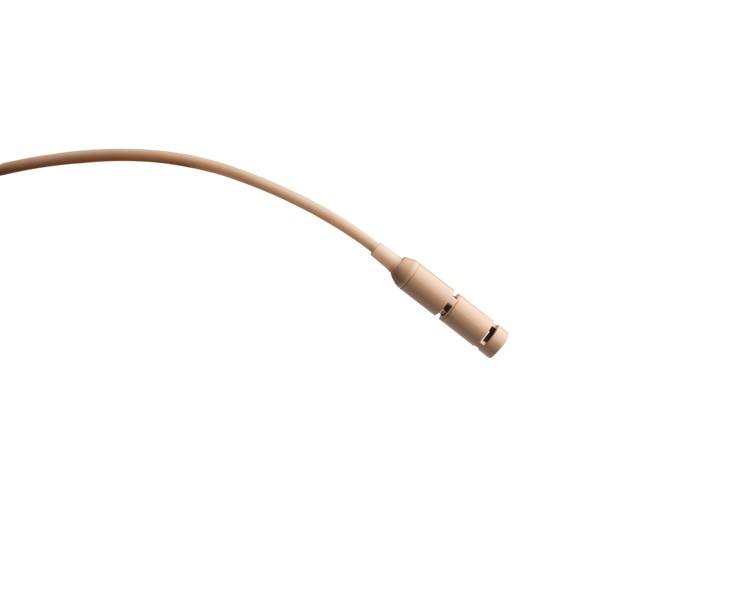

CR-8L Cardioid lavalier microphone

Model No: CR-8L

The CR-8L Cardioid Lavalier Microphone is a miniature microphone designed with a tight pick-up pattern to address feedback concerns. The microphone has an extremely small format of a mere 4mm in diameter, and a surprising capability to handle up to 135dB max SPL.

DOWNLOAD CATALOG
MICS IN ACTION

Excellent Isolation

The CR-8L cardioid lavalier microphone is one of the best choices for amplification in high volume situations where gain before feedback is a problem. The results you get from the miniature size of this cardioid lavalier are more than you would expect!

Small Mic with a Big Sound

The CR-8L lavalier microphone has an extremely small format of a mere 4mm in diameter, and a surprising capability to handle up to 135dB max SPL.

Sound Designer

Wonderland, Alice's Rock & Roll Adventure

“I went with the cardioid mics for my production because I needed to control mic bleed from the monitoring of rock and roll instruments around the actors. All of the actors were on earset mics; however, we had a number of acoustic instruments (ukulele, banjo, violin) that needed to be amplified, and that's where we used the lavs.”

Expand for Microphone Details

What's Included

x-con-Open

X-Connector

Interchangeable X-Connectors offer a rapid and inexpensive way to quickly change the microphone wireless termination from one brand to another.

WSN-BE Windscreen beige

WSN (small)
Windscreen

Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.

WSNx-BE large windscreen in beige

WSNx (large)
Windscreen

A larger windscreen is included for cardioid microphones as you can get more wind rejection with a larger windscreen.

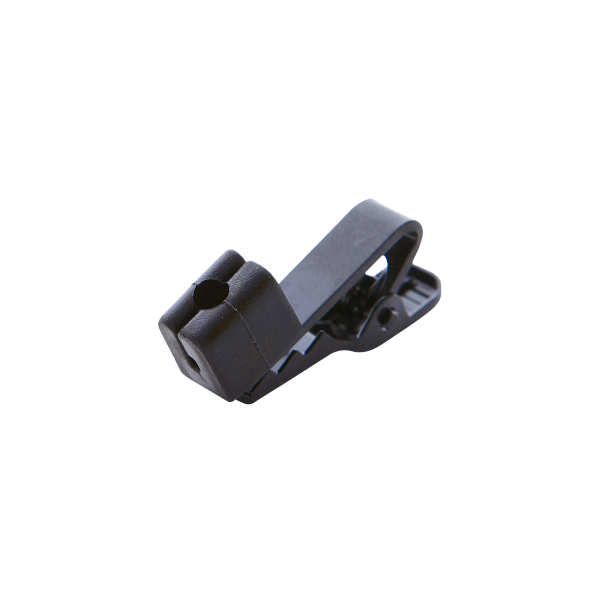

Mic Cable Clip

Cable Clip

This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.

See More Accessories

Color Options

icon

Beige

icon

Brown

icon

Black

Microphone Features

  • Highly flexible boom bends 360° and more!  "Unbreakable Boom" bends 360°
  • Max SPL reaches up to 148dB   135dB max SPL
  • User-friendly interchangeable threaded screw “X-connectors”   Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Mic element only 4mm in diameter
  • Optimal gain before feedback
  • Available in colors beige, brown or black

Microphone Specifications

Specifications

Element: Back Electret Condenser
Pattern: Cardioid
Frequency: 160Hz - 14kHz
Sensitivity: -50dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 135dB SPL
Output Impedance: 1,700 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Polar Response

CR-8_polar_response

Frequency Response

CR-8_frequency_response
