NEW! Cross Function Headset Microphone

CO2 Confidence Dual Element Microphones

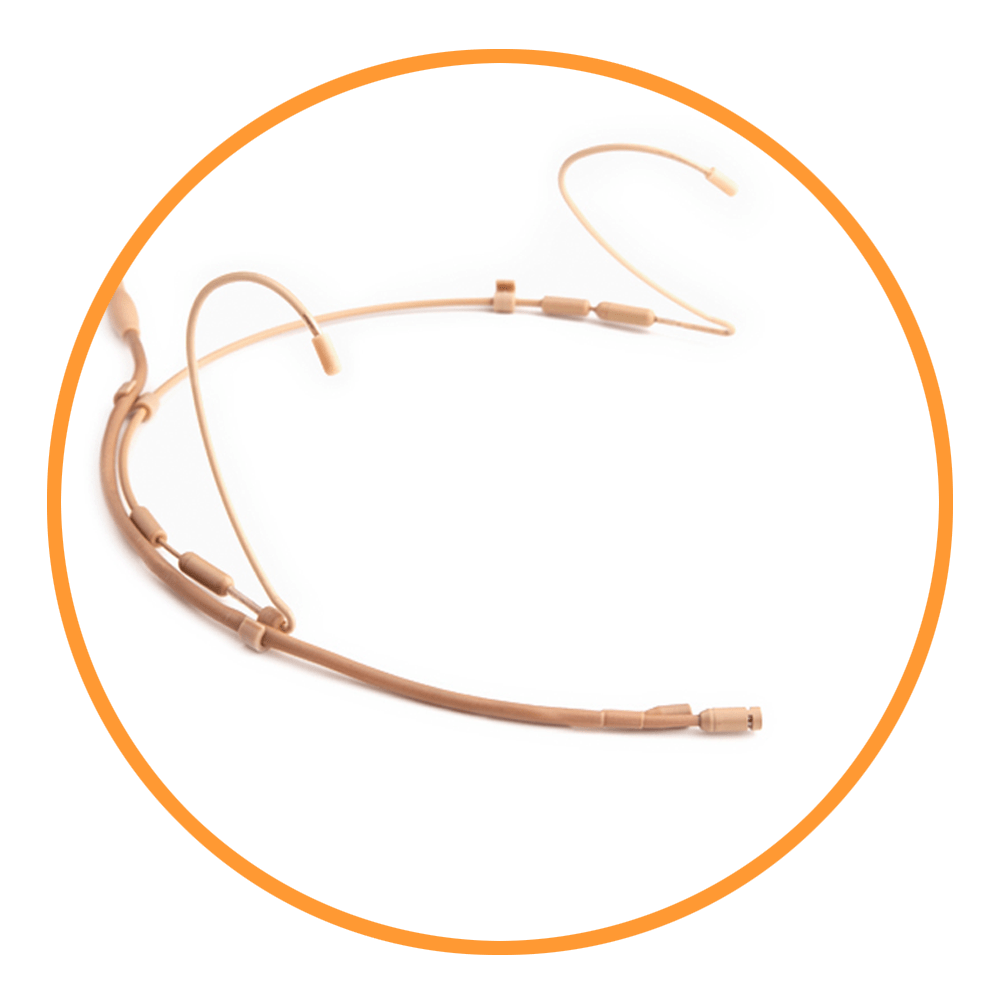

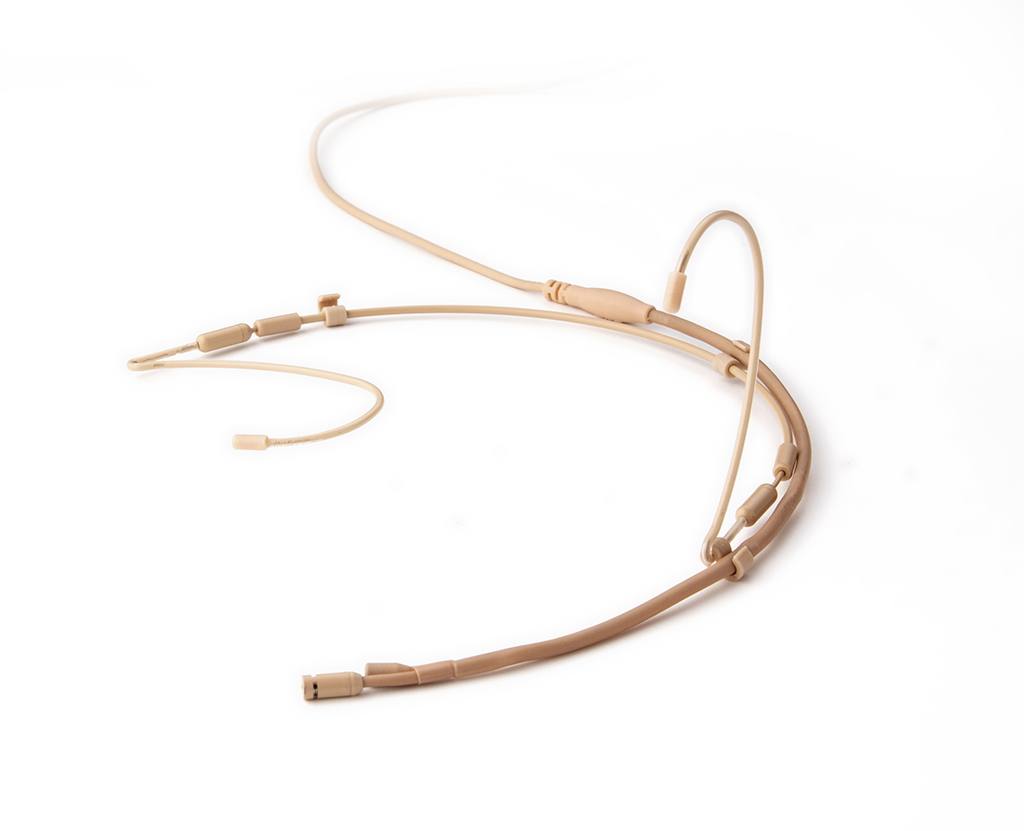

CX2-8D Dual Switchable Element Headset, Directional/Omnidirectional Elements

Model No: CX2-8D

Dual Pattern Elements in One Microphone

PATENTED

The CX2 switches between, or operates simultaneously as an omnidirectional and directional microphone ready to address a host of audio scenarios.

Perfect for hybrid events! For unexpected feedback in live sound applications, switch from the omni to the directional mic for an instant solution. While the omni delivers an excellent live audio signal, the directional mic simultaneously optimizes it for a clean recording or broadcasting feed.



Download Catalog
SEE MICS IN ACTION

Features Dual Pattern Elements

Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

The CX2 headset microphone has a patented design that supports audio feeds in both omni and directional pickup patterns—simultaneously.

The elements are offset creating a seamless appearance of a single microphone. There's no unnecessary bulk or doubling up on cables. The mic cable splits approximately nine inches above connection to the body-packs to allow ample room for separation of two transmitters.



Headset Wears Left or Right

Ear hooks fold flat for protection in storage and travel.
Like all our headset microphones, the CX2-8D features the unique ability to reverse for left or right ear wearing to accommodate any mic user or production requirement.

Watch how easy it is to convert your headset...

View this post on Instagram

A post shared by Point Source Audio (@point_source_audio)

Expand for Microphone Details

What's Included

x-con-Open

X-Connector

Interchangeable X-Connectors offer a rapid and inexpensive way to quickly change the microphone wireless termination from one brand to another.

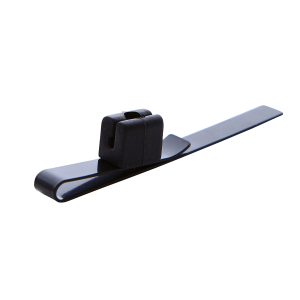

MIC SLIDER CLIP1 - Black Color

Slider Clip

Included for traditional mounting on clothing. Our proprietary Slider Clips "slide" on to all types of fabrics — even the thinnest, most delicate materials — with a steadfast hold.

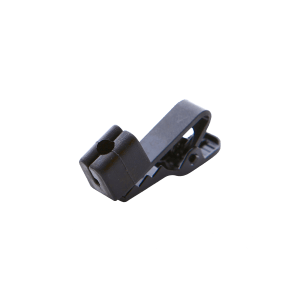

Mic Cable Clip

Cable Clip

This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.

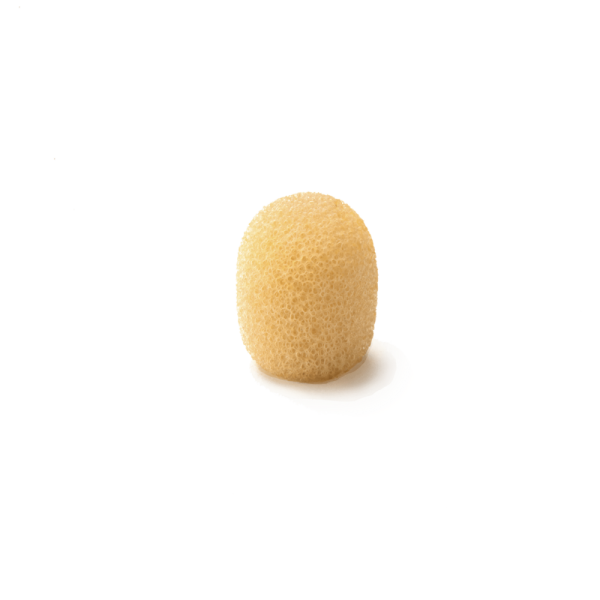

WSN-BE Windscreen beige

Windscreen

Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.

See More Accessories

Color Options

icon

Beige

icon

Brown

icon

Black

Microphone Features

This cross-function headset has both an omni and cardioid element to optimize for live PA and streaming simultaneously.

  • Highly flexible boom bends 360° and more!  "Unbreakable Boom" bends 360°
  • Max SPL reaches up to 148dB   136dB max SPL Omni; 135dB max SPL Cardioid
  • User-friendly interchangeable threaded screw “X-connectors”   Two interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Omni and Directional mic elements only 4mm in diameter
  • Optimal gain before feedback
  • Available in colors beige, brown or black

Microphone Specifications

Omni Specifications

Element: Back Electret Condenser
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Frequency Response

CO-8_frequency_response

Polar Response

CO-8_polar_response

Cardioid Specifications

Element: Back Electret Condenser
Pattern: Cardioid
Frequency: 160Hz - 14kHz
Sensitivity: -50dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 135dB SPL
Output Impedance: 1,700 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft. + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems

Frequency Response

CR-8_frequency_response

Polar Response

CR-8_polar_response
DOWNLOAD SPECS

Where To Buy

B&H Photo
Sound Productions
proaudio.com
Markertek
Performance Audio
Full Compass
Find A Local Dealer

Why Choose Sides?

Enjoy the Convenience of Dual Pattern Elements

FIND DEALERS
CX2-8D Dual Switchable Element Headset, Directional/Omnidirectional Elements

There’s No Harm in Asking...

We let the audio precision of our miniature microphones and headsets speak for itself. But if you’re not sure which mic is right for you, contact us and we’ll be sure to give you the straight talk.

Message us on Instagram
Tweet to us
Follow us on LinkedIn
Message us on Facebook
Email us for assistance
Call us at 415-226-1122
  • Highly flexible boom bends 360° and more!  "Unbreakable Boom" bends 360°
  • Max SPL reaches up to 148dB   136dB max SPL
  •    IP57 waterproof rated
  • User-friendly interchangeable threaded screw “X-connectors”   Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Mic element only 4mm in diameter
  • Optimal gain before feedback
  • Available in colors beige, brown or black
  • Highly flexible boom bends 360° and more!  "Unbreakable Boom" bends 360°
  • Max SPL reaches up to 148dB   135dB max SPL
  • User-friendly interchangeable threaded screw “X-connectors”   Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
  • Mic element only 4mm in diameter
  • Optimal gain before feedback
  • Available in colors beige, brown or black
