Dual Element Headset Microphone
Model No: CO2-8WD
PATENTED
Our award-winning SERIES8 omnidirectional headsets provide you with absolute confidence in fitting and microphone placement—and now even more so with fully redundant elements that are factory matched and mated into an ultra low-profile tandem form factor. Both elements are IP 57 waterproof rated against water, sweat and makeup; and our super bendable boom on this headset is “Unbreakable” up to 360°. Each microphone accepts two interchangeable X-Connectors for termination to your wireless system.
TWO MICS for the size of ONE
The headset microphone's patent pending design offers built-in microphone redundancy with the convenience of a single cable. The elements are factory matched to a near identical ±0.5 dB difference—and both elements are IP 57 waterproof rated. The mic elements are offset to reduce mass and effectuate a sleek profile.

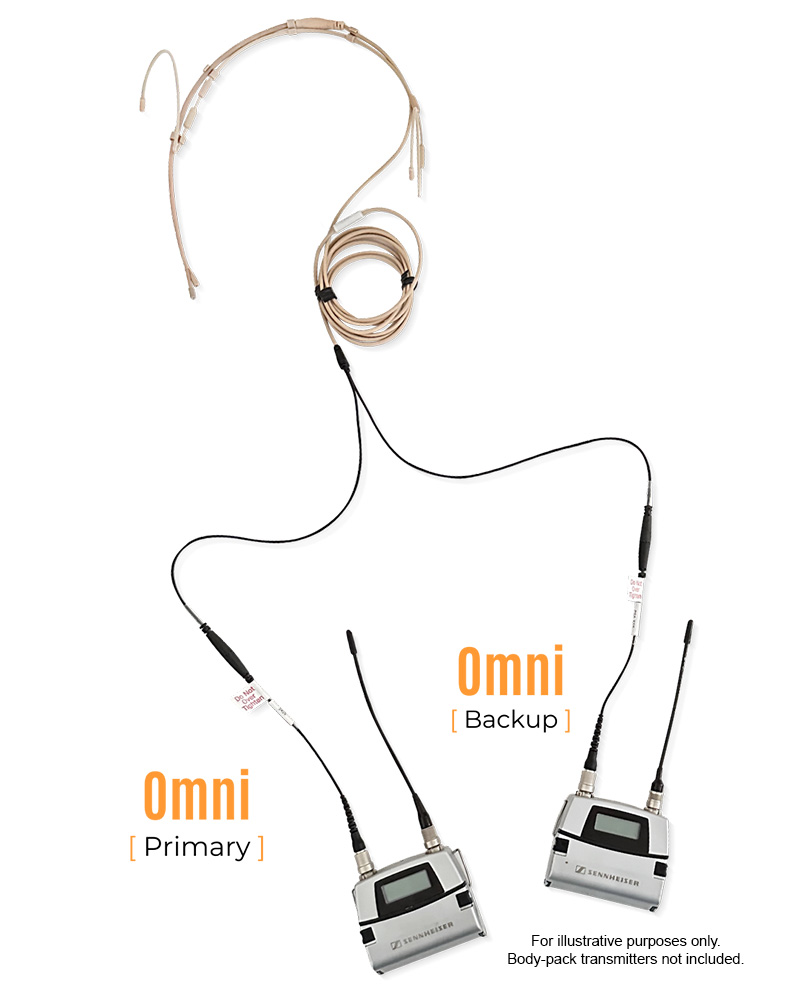

The mic cable splits approximately nine inches above connection to the body-packs to allow ample room for separation of the transmitters.
Choose the CO2-8WD headset microphone and get the confidence of built-in backup. High performance but low-profile, this dual petite element headset mic is the best headset microphone for theatrical performers, live audio professionals and broadcasters alike.
Wears Left or Right
Ear hooks fold flat for protection in storage and travel.
Like our original single element headset microphone, the CO2-8WD features the unique ability to reverse for left or right ear wearing to accommodate any mic user or production requirement.
Expand for Microphone Details
X-Connector
Interchangeable X-Connectors offer a rapid and inexpensive way to quickly change the microphone wireless termination from one brand to another.
Slider Clip
Included for traditional mounting on clothing. Our proprietary Slider Clips "slide" on to all types of fabrics — even the thinnest, most delicate materials — with a steadfast hold.
Cable Clip
This traditional style alligator clip helps provide strain relief to the microphone so that movement of the boom is minimized to ensure a consistent audio level.
Windscreen
Windscreens help reduce exposure to the element from clothing noise, gusts of wind, and dust particles.
Beige
Brown
Black
- 2 MICS IN ONE: Dual matched waterproof elements for built-in redundancy
"Unbreakable Boom" bends 360°- 136 dB max SPL
- IP 57 waterproof rated
- Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
"Unbreakable Boom" bends 360°
136 dB max SPL
IP 57 waterproof rated
Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica- Mic element only 3mm in diameter
- Optimal gain before feedback
- Available in colors beige, brown or black
Specifications
Element: Waterproof Back Electret Condenser (2 Matched)
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43 dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136 dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 6 ft . + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style, 3.5mm TRRS | Check Compatible Wireless Systems
Polar Response
Frequency Response
Get Built-in Backup for Your Headset. Invest in Confidence!
